storm::expressions::BinaryBooleanFunctionExpression Class Reference

#include <BinaryBooleanFunctionExpression.h>

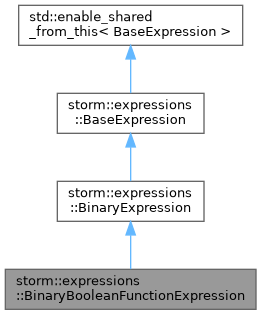

Inheritance diagram for storm::expressions::BinaryBooleanFunctionExpression:
Collaboration diagram for storm::expressions::BinaryBooleanFunctionExpression:

Public Types

enum class  OperatorType {
  And , Or , Xor , Implies ,
  Iff
}
 An enum type specifying the different operators applicable. More...


Public Member Functions

 BinaryBooleanFunctionExpression (ExpressionManager const &manager, Type const &type, std::shared_ptr< BaseExpression const > const &firstOperand, std::shared_ptr< BaseExpression const > const &secondOperand, OperatorType operatorType)
 Creates a binary boolean function expression with the given return type, operands and operator.

 BinaryBooleanFunctionExpression (BinaryBooleanFunctionExpression const &other)=default

BinaryBooleanFunctionExpressionoperator= (BinaryBooleanFunctionExpression const &other)=delete

 BinaryBooleanFunctionExpression (BinaryBooleanFunctionExpression &&)=default

BinaryBooleanFunctionExpressionoperator= (BinaryBooleanFunctionExpression &&)=delete

virtual ~BinaryBooleanFunctionExpression ()=default

virtual storm::expressions::OperatorType getOperator () const override
 Retrieves the operator of a function application.

virtual bool evaluateAsBool (Valuation const *valuation=nullptr) const override
 Evaluates the expression under the valuation of unknowns (variables and constants) given by the valuation and returns the resulting boolean value.

virtual std::shared_ptr< BaseExpression const > simplify () const override
 Simplifies the expression according to some simple rules.

virtual boost::any accept (ExpressionVisitor &visitor, boost::any const &data) const override
 Accepts the given visitor by calling its visit method.

virtual bool isBinaryBooleanFunctionExpression () const override

OperatorType getOperatorType () const
 Retrieves the operator associated with the expression.

- Public Member Functions inherited from storm::expressions::BinaryExpression
 BinaryExpression (ExpressionManager const &manager, Type const &type, std::shared_ptr< BaseExpression const > const &firstOperand, std::shared_ptr< BaseExpression const > const &secondOperand)
 Constructs a binary expression with the given return type and operands.

 BinaryExpression (BinaryExpression const &other)=default

BinaryExpressionoperator= (BinaryExpression const &other)=delete

 BinaryExpression (BinaryExpression &&)=default

BinaryExpressionoperator= (BinaryExpression &&)=delete

virtual ~BinaryExpression ()=default

virtual bool isFunctionApplication () const override
 Checks if the expression is a function application (of any sort).

virtual bool containsVariables () const override
 Retrieves whether the expression contains a variable.

virtual uint_fast64_t getArity () const override
 Returns the arity of the expression.

virtual std::shared_ptr< BaseExpression const > getOperand (uint_fast64_t operandIndex) const override
 Retrieves the given operand from the expression.

virtual void gatherVariables (std::set< storm::expressions::Variable > &variables) const override
 Retrieves the set of all variables that appear in the expression.

std::shared_ptr< BaseExpression const > const & getFirstOperand () const
 Retrieves the first operand of the expression.

std::shared_ptr< BaseExpression const > const & getSecondOperand () const
 Retrieves the second operand of the expression.

- Public Member Functions inherited from storm::expressions::BaseExpression
 BaseExpression (ExpressionManager const &manager, Type const &type)
 Constructs a base expression with the given return type.

 BaseExpression (BaseExpression const &)=default

BaseExpressionoperator= (BaseExpression const &)=delete

 BaseExpression (BaseExpression &&)=default

BaseExpressionoperator= (BaseExpression &&)=delete

virtual ~BaseExpression ()=default

Expression toExpression () const
 Converts the base expression to a proper expression.

virtual int_fast64_t evaluateAsInt (Valuation const *valuation=nullptr) const
 Evaluates the expression under the valuation of unknowns (variables and constants) given by the valuation and returns the resulting integer value.

virtual double evaluateAsDouble (Valuation const *valuation=nullptr) const
 Evaluates the expression under the valuation of unknowns (variables and constants) given by the valuation and returns the resulting double value.

virtual storm::RationalNumber evaluateAsRational () const
 Evaluates the expression and returns the resulting rational number.

virtual std::string const & getIdentifier () const
 Retrieves the identifier associated with this expression.

virtual bool isLiteral () const
 Retrieves whether the expression is a literal.

virtual bool isVariable () const
 Retrieves whether the expression is a variable.

virtual bool isTrue () const
 Checks if the expression is equal to the boolean literal true.

virtual bool isFalse () const
 Checks if the expression is equal to the boolean literal false.

std::shared_ptr< BaseExpression const > reduceNesting () const
 Tries to flatten the syntax tree of the expression, e.g., 1 + (2 + (3 + 4)) becomes (1 + 2) + (3 + 4)

bool hasNumericalType () const
 Retrieves whether the expression has a numerical type, i.e., integer or double.

bool hasIntegerType () const
 Retrieves whether the expression has an integer type.

bool hasBitVectorType () const
 Retrieves whether the expression has a bitvector type.

bool hasBooleanType () const
 Retrieves whether the expression has a boolean type.

bool hasRationalType () const
 Retrieves whether the expression has a rational return type.

std::shared_ptr< BaseExpression const > getSharedPointer () const
 Retrieves a shared pointer to this expression.

ExpressionManager const & getManager () const
 Retrieves the manager responsible for this expression.

Type const & getType () const
 Retrieves the type of the expression.

virtual bool isIfThenElseExpression () const

IfThenElseExpression const & asIfThenElseExpression () const

BinaryBooleanFunctionExpression const & asBinaryBooleanFunctionExpression () const

virtual bool isBinaryNumericalFunctionExpression () const

BinaryNumericalFunctionExpression const & asBinaryNumericalFunctionExpression () const

virtual bool isBinaryRelationExpression () const

BinaryRelationExpression const & asBinaryRelationExpression () const

virtual bool isBooleanLiteralExpression () const

BooleanLiteralExpression const & asBooleanLiteralExpression () const

virtual bool isIntegerLiteralExpression () const

IntegerLiteralExpression const & asIntegerLiteralExpression () const

virtual bool isRationalLiteralExpression () const

RationalLiteralExpression const & asRationalLiteralExpression () const

virtual bool isUnaryBooleanFunctionExpression () const

UnaryBooleanFunctionExpression const & asUnaryBooleanFunctionExpression () const

virtual bool isUnaryNumericalFunctionExpression () const

UnaryNumericalFunctionExpression const & asUnaryNumericalFunctionExpression () const

virtual bool isVariableExpression () const

VariableExpression const & asVariableExpression () const

virtual bool isPredicateExpression () const

PredicateExpression const & asPredicateExpression () const


Protected Member Functions

virtual void printToStream (std::ostream &stream) const override
 Prints the expression to the given stream.


Detailed Description

Definition at line 9 of file BinaryBooleanFunctionExpression.h.

Member Enumeration Documentation

◆ OperatorType

An enum type specifying the different operators applicable.

Enumerator
And
Or
Xor
Implies
Iff

Definition at line 14 of file BinaryBooleanFunctionExpression.h.

Constructor & Destructor Documentation

◆ BinaryBooleanFunctionExpression() [1/3]

storm::expressions::BinaryBooleanFunctionExpression::BinaryBooleanFunctionExpression ( ExpressionManager const &  manager,
Type const &  type,
std::shared_ptr< BaseExpression const > const &  firstOperand,
std::shared_ptr< BaseExpression const > const &  secondOperand,
OperatorType  operatorType
)

Creates a binary boolean function expression with the given return type, operands and operator.

Parameters
managerThe manager responsible for this expression.
typeThe return type of the expression.
firstOperandThe first operand of the expression.
secondOperandThe second operand of the expression.
functionTypeThe operator of the expression.

Definition at line 12 of file BinaryBooleanFunctionExpression.cpp.

◆ BinaryBooleanFunctionExpression() [2/3]

storm::expressions::BinaryBooleanFunctionExpression::BinaryBooleanFunctionExpression ( BinaryBooleanFunctionExpression const &  other)
default

◆ BinaryBooleanFunctionExpression() [3/3]

storm::expressions::BinaryBooleanFunctionExpression::BinaryBooleanFunctionExpression ( BinaryBooleanFunctionExpression &&  )
default

◆ ~BinaryBooleanFunctionExpression()

virtual storm::expressions::BinaryBooleanFunctionExpression::~BinaryBooleanFunctionExpression ( )
virtualdefault

Member Function Documentation

◆ accept()

boost::any storm::expressions::BinaryBooleanFunctionExpression::accept ( ExpressionVisitor visitor,
boost::any const &  data
) const
overridevirtual

Accepts the given visitor by calling its visit method.

Parameters
visitorThe visitor that is to be accepted.

Implements storm::expressions::BaseExpression.

Definition at line 162 of file BinaryBooleanFunctionExpression.cpp.

◆ evaluateAsBool()

bool storm::expressions::BinaryBooleanFunctionExpression::evaluateAsBool ( Valuation const *  valuation = nullptr) const
overridevirtual

Evaluates the expression under the valuation of unknowns (variables and constants) given by the valuation and returns the resulting boolean value.

If the return type of the expression is not a boolean an exception is thrown.

Parameters
valuationThe valuation of unknowns under which to evaluate the expression.
Returns
The boolean value of the expression under the given valuation.

Reimplemented from storm::expressions::BaseExpression.

Definition at line 45 of file BinaryBooleanFunctionExpression.cpp.

◆ getOperator()

storm::expressions::OperatorType storm::expressions::BinaryBooleanFunctionExpression::getOperator ( ) const
overridevirtual

Retrieves the operator of a function application.

This is only legal to call if the expression is function application.

Returns
The operator associated with the function application.

Reimplemented from storm::expressions::BaseExpression.

Definition at line 23 of file BinaryBooleanFunctionExpression.cpp.

◆ getOperatorType()

BinaryBooleanFunctionExpression::OperatorType storm::expressions::BinaryBooleanFunctionExpression::getOperatorType ( ) const

Retrieves the operator associated with the expression.

Returns
The operator associated with the expression.

Definition at line 19 of file BinaryBooleanFunctionExpression.cpp.

◆ isBinaryBooleanFunctionExpression()

bool storm::expressions::BinaryBooleanFunctionExpression::isBinaryBooleanFunctionExpression ( ) const
overridevirtual

Reimplemented from storm::expressions::BaseExpression.

Definition at line 166 of file BinaryBooleanFunctionExpression.cpp.

◆ operator=() [1/2]

BinaryBooleanFunctionExpression & storm::expressions::BinaryBooleanFunctionExpression::operator= ( BinaryBooleanFunctionExpression &&  )
delete

◆ operator=() [2/2]

BinaryBooleanFunctionExpression & storm::expressions::BinaryBooleanFunctionExpression::operator= ( BinaryBooleanFunctionExpression const &  other)
delete

◆ printToStream()

void storm::expressions::BinaryBooleanFunctionExpression::printToStream ( std::ostream &  stream) const
overrideprotectedvirtual

Prints the expression to the given stream.

Parameters
streamThe stream to which to write the expression.

Implements storm::expressions::BaseExpression.

Definition at line 170 of file BinaryBooleanFunctionExpression.cpp.

◆ simplify()

std::shared_ptr< BaseExpression const > storm::expressions::BinaryBooleanFunctionExpression::simplify ( ) const
overridevirtual

Simplifies the expression according to some simple rules.

Returns
A pointer to the simplified expression.

Implements storm::expressions::BaseExpression.

Definition at line 73 of file BinaryBooleanFunctionExpression.cpp.


The documentation for this class was generated from the following files:
