A base class managing the labeling of items with a number of (atomic) labels. More...

#include <ItemLabeling.h>

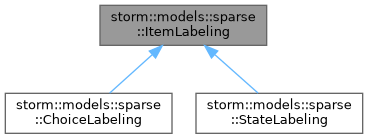

Inheritance diagram for storm::models::sparse::ItemLabeling:

[legend]

Public Member Functions
	ItemLabeling (uint64_t itemCount=0)
	Constructs an empty labeling for the given number of items.

	ItemLabeling (ItemLabeling const &other)=default

ItemLabeling &	operator= (ItemLabeling const &other)=default

virtual	~ItemLabeling ()=default

virtual bool	isStateLabeling () const

virtual bool	isChoiceLabeling () const

StateLabeling const &	asStateLabeling () const

StateLabeling &	asStateLabeling ()

ChoiceLabeling const &	asChoiceLabeling () const

ChoiceLabeling &	asChoiceLabeling ()

bool	operator== (ItemLabeling const &other) const
	Checks whether the two labelings are equal.

void	addLabel (std::string const &label)
	Adds a new label to the labelings.

void	removeLabel (std::string const &label)
	Removes a label from the labelings.

std::set< std::string >	getLabels () const
	Retrieves the set of labels contained in this labeling.

void	addLabel (std::string const &label, storage::BitVector const &labeling)
	Creates a new label and attaches it to the given items.

void	addLabel (std::string const &label, storage::BitVector &&labeling)
	Creates a new label and attaches it to the given items.

std::string	addUniqueLabel (std::string const &prefix, storage::BitVector const &labeling)
	Creates a new label with a unique name, derived from the prefix, and attaches it to the given items.

std::string	addUniqueLabel (std::string const &prefix, storage::BitVector const &&labeling)
	Creates a new label with a unique name, derived from the prefix, and attaches it to the given items.

void	join (ItemLabeling const &other)
	Adds all labels from the other labeling to this labeling.

bool	containsLabel (std::string const &label) const
	Checks whether a label is registered within this labeling.

std::size_t	getNumberOfLabels () const
	Returns the number of labels managed by this object.

std::size_t	getNumberOfItems () const
	Returns the number of items managed by this object.

void	permuteItems (std::vector< uint64_t > const &inversePermutation)

virtual std::size_t	hash () const

void	printLabelingInformationToStream (std::ostream &out=std::cout) const
	Prints information about the labeling to the specified stream.

void	printCompleteLabelingInformationToStream (std::ostream &out=std::cout) const
	Prints the complete labeling to the specified stream.

Protected Member Functions
ItemLabeling	getSubLabeling (storm::storage::BitVector const &items) const
	Retrieves the sub labeling that represents the same labeling as the current one for all selected items.

virtual std::set< std::string >	getLabelsOfItem (uint64_t item) const
	Retrieves the set of labels attached to the given item.

virtual bool	getItemHasLabel (std::string const &label, uint64_t item) const
	Checks whether a given item is labeled with the given label.

virtual storm::storage::BitVector const &	getItems (std::string const &label) const
	Returns the labeling of items associated with the given label.

virtual void	setItems (std::string const &label, storage::BitVector const &labeling)
	Sets the labeling of items associated with the given label.

virtual void	setItems (std::string const &label, storage::BitVector &&labeling)
	Sets the labeling of items associated with the given label.

virtual void	addLabelToItem (std::string const &label, uint64_t item)
	Adds a label to a given item.

virtual void	removeLabelFromItem (std::string const &label, uint64_t item)
	Removes a label from a given item.

std::string	generateUniqueLabel (const std::string &prefix) const
	Generate a unique, previously unused label from the given prefix string.

Protected Attributes
uint64_t	itemCount

std::unordered_map< std::string, uint64_t >	nameToLabelingIndexMap

std::vector< storm::storage::BitVector >	labelings

Friends
std::ostream &	operator<< (std::ostream &out, ItemLabeling const &labeling)

Detailed Description

A base class managing the labeling of items with a number of (atomic) labels.

Definition at line 21 of file ItemLabeling.h.

Constructor & Destructor Documentation

◆ ItemLabeling() [1/2]

storm::models::sparse::ItemLabeling::ItemLabeling ( uint64_t itemCount = 0 )

explicit

Constructs an empty labeling for the given number of items.

Parameters

itemCount The number of items for which this labeling can hold the labels.

◆ ItemLabeling() [2/2]

storm::models::sparse::ItemLabeling::ItemLabeling ( ItemLabeling const & other )

default

◆ ~ItemLabeling()

virtual storm::models::sparse::ItemLabeling::~ItemLabeling ( )

virtualdefault

Member Function Documentation

◆ addLabel() [1/3]

void storm::models::sparse::ItemLabeling::addLabel ( std::string const & label )

Adds a new label to the labelings.

Initially, no item is labeled with this label.

Parameters

label The name of the new label.

Definition at line 63 of file ItemLabeling.cpp.

◆ addLabel() [2/3]

void storm::models::sparse::ItemLabeling::addLabel	(	std::string const &	label,
		storage::BitVector &&	labeling
	)

Creates a new label and attaches it to the given items.

Note that the dimension of given labeling must match the number of items for which this item labeling is valid.

Parameters

label	The new label.
labeling	A bit vector that indicates whether or not the new label is attached to a item.

Definition at line 134 of file ItemLabeling.cpp.

◆ addLabel() [3/3]

void storm::models::sparse::ItemLabeling::addLabel	(	std::string const &	label,
		storage::BitVector const &	labeling
	)

Creates a new label and attaches it to the given items.

Note that the dimension of given labeling must match the number of items for which this item labeling is valid.

Parameters

label	The new label.
labeling	A bit vector that indicates whether or not the new label is attached to a item.

Definition at line 126 of file ItemLabeling.cpp.

◆ addLabelToItem()

void storm::models::sparse::ItemLabeling::addLabelToItem	(	std::string const &	label,
		uint64_t	item
	)

protectedvirtual

Adds a label to a given item.

Parameters

label	The name of the label to add.
item	The index of the item to label.

Definition at line 158 of file ItemLabeling.cpp.

◆ addUniqueLabel() [1/2]

std::string storm::models::sparse::ItemLabeling::addUniqueLabel	(	std::string const &	prefix,
		storage::BitVector const &&	labeling
	)

Creates a new label with a unique name, derived from the prefix, and attaches it to the given items.

Note that the dimension of given labeling must match the number of items for which this item labeling is valid.

Parameters

prefix	A prefix to use for the new label.
labeling	A bit vector that indicates whether or not the new label is attached to a item.

Returns: the new label

Definition at line 148 of file ItemLabeling.cpp.

◆ addUniqueLabel() [2/2]

std::string storm::models::sparse::ItemLabeling::addUniqueLabel	(	std::string const &	prefix,
		storage::BitVector const &	labeling
	)

Creates a new label with a unique name, derived from the prefix, and attaches it to the given items.

Note that the dimension of given labeling must match the number of items for which this item labeling is valid.

Parameters

prefix	A prefix to use for the new label.
labeling	A bit vector that indicates whether or not the new label is attached to a item.

Returns: the new label

Definition at line 142 of file ItemLabeling.cpp.

◆ asChoiceLabeling() [1/2]

ChoiceLabeling & storm::models::sparse::ItemLabeling::asChoiceLabeling ( )

Definition at line 33 of file ItemLabeling.cpp.

◆ asChoiceLabeling() [2/2]

ChoiceLabeling const & storm::models::sparse::ItemLabeling::asChoiceLabeling ( ) const

Definition at line 30 of file ItemLabeling.cpp.

◆ asStateLabeling() [1/2]

StateLabeling & storm::models::sparse::ItemLabeling::asStateLabeling ( )

Definition at line 27 of file ItemLabeling.cpp.

◆ asStateLabeling() [2/2]

StateLabeling const & storm::models::sparse::ItemLabeling::asStateLabeling ( ) const

Definition at line 24 of file ItemLabeling.cpp.

◆ containsLabel()

bool storm::models::sparse::ItemLabeling::containsLabel ( std::string const & label ) const

Checks whether a label is registered within this labeling.

Returns: True if the label is known, false otherwise.

Definition at line 154 of file ItemLabeling.cpp.

◆ generateUniqueLabel()

std::string storm::models::sparse::ItemLabeling::generateUniqueLabel ( const std::string & prefix ) const

protected

Generate a unique, previously unused label from the given prefix string.

Definition at line 232 of file ItemLabeling.cpp.

◆ getItemHasLabel()

bool storm::models::sparse::ItemLabeling::getItemHasLabel	(	std::string const &	label,
		uint64_t	item
	)		const

protectedvirtual

Checks whether a given item is labeled with the given label.

Parameters

label	The name of the label.
item	The index of the item to check.

Returns: True if the node is labeled with the label, false otherwise.

Definition at line 171 of file ItemLabeling.cpp.

◆ getItems()

storm::storage::BitVector const & storm::models::sparse::ItemLabeling::getItems ( std::string const & label ) const

protectedvirtual

Returns the labeling of items associated with the given label.

Parameters

label The name of the label.

Returns: A bit vector that represents the labeling of the items with the given label.

Definition at line 185 of file ItemLabeling.cpp.

◆ getLabels()

std::set< std::string > storm::models::sparse::ItemLabeling::getLabels ( ) const

Retrieves the set of labels contained in this labeling.

Returns: The set of known labels.

Definition at line 98 of file ItemLabeling.cpp.

◆ getLabelsOfItem()

std::set< std::string > storm::models::sparse::ItemLabeling::getLabelsOfItem ( uint64_t item ) const

protectedvirtual

Retrieves the set of labels attached to the given item.

Parameters

item	The item for which to retrieve the labels.

Returns: The labels attached to the given item.

Definition at line 106 of file ItemLabeling.cpp.

◆ getNumberOfItems()

std::size_t storm::models::sparse::ItemLabeling::getNumberOfItems ( ) const

Returns the number of items managed by this object.

Returns: The number of labels.

Definition at line 181 of file ItemLabeling.cpp.

◆ getNumberOfLabels()

std::size_t storm::models::sparse::ItemLabeling::getNumberOfLabels ( ) const

Returns the number of labels managed by this object.

Returns: The number of labels.

Definition at line 177 of file ItemLabeling.cpp.

◆ getSubLabeling()

ItemLabeling storm::models::sparse::ItemLabeling::getSubLabeling ( storm::storage::BitVector const & items ) const

protected

Retrieves the sub labeling that represents the same labeling as the current one for all selected items.

Parameters

items The selected set of items.

Definition at line 55 of file ItemLabeling.cpp.

◆ hash()

std::size_t storm::models::sparse::ItemLabeling::hash ( ) const

virtual

Definition at line 223 of file ItemLabeling.cpp.

◆ isChoiceLabeling()

bool storm::models::sparse::ItemLabeling::isChoiceLabeling ( ) const

virtual

Reimplemented in storm::models::sparse::ChoiceLabeling.

Definition at line 20 of file ItemLabeling.cpp.

◆ isStateLabeling()

bool storm::models::sparse::ItemLabeling::isStateLabeling ( ) const

virtual

Reimplemented in storm::models::sparse::StateLabeling.

Definition at line 17 of file ItemLabeling.cpp.

◆ join()

void storm::models::sparse::ItemLabeling::join ( ItemLabeling const & other )

Adds all labels from the other labeling to this labeling.

It is assumed that both labelings have the same itemcount. If a label is present in both labellings, we take the union of the corresponding item sets.

Definition at line 86 of file ItemLabeling.cpp.

◆ operator=()

ItemLabeling & storm::models::sparse::ItemLabeling::operator= ( ItemLabeling const & other )

default

◆ operator==()

bool storm::models::sparse::ItemLabeling::operator== ( ItemLabeling const & other ) const

Checks whether the two labelings are equal.

Parameters

other The labeling with which the current one is compared.

Returns: True iff the labelings are equal.

Definition at line 37 of file ItemLabeling.cpp.

◆ permuteItems()

void storm::models::sparse::ItemLabeling::permuteItems ( std::vector< uint64_t > const & inversePermutation )

Definition at line 116 of file ItemLabeling.cpp.

◆ printCompleteLabelingInformationToStream()

void storm::models::sparse::ItemLabeling::printCompleteLabelingInformationToStream ( std::ostream & out = std::cout ) const

Prints the complete labeling to the specified stream.

Parameters

out	The stream the information is to be printed to.

Definition at line 212 of file ItemLabeling.cpp.

◆ printLabelingInformationToStream()

void storm::models::sparse::ItemLabeling::printLabelingInformationToStream ( std::ostream & out = std::cout ) const

Prints information about the labeling to the specified stream.

Parameters

out	The stream the information is to be printed to.

Definition at line 205 of file ItemLabeling.cpp.

◆ removeLabel()

void storm::models::sparse::ItemLabeling::removeLabel ( std::string const & label )

Removes a label from the labelings.

Parameters

label The name of the label to remove.

Definition at line 67 of file ItemLabeling.cpp.

◆ removeLabelFromItem()

void storm::models::sparse::ItemLabeling::removeLabelFromItem	(	std::string const &	label,
		uint64_t	item
	)

protectedvirtual

Removes a label from a given item.

Parameters

label	The name of the label to remove.
item	The index of the item.

Definition at line 164 of file ItemLabeling.cpp.

◆ setItems() [1/2]

void storm::models::sparse::ItemLabeling::setItems	(	std::string const &	label,
		storage::BitVector &&	labeling
	)

protectedvirtual

Sets the labeling of items associated with the given label.

Parameters

label	The name of the label.
labeling	A bit vector that represents the set of items that will get this label.

Definition at line 198 of file ItemLabeling.cpp.

◆ setItems() [2/2]

void storm::models::sparse::ItemLabeling::setItems	(	std::string const &	label,
		storage::BitVector const &	labeling
	)

protectedvirtual

Sets the labeling of items associated with the given label.

Parameters

label	The name of the label.
labeling	A bit vector that represents the set of items that will get this label.

Definition at line 191 of file ItemLabeling.cpp.

Friends And Related Symbol Documentation

◆ operator<<

std::ostream & operator<<	(	std::ostream &	out,
		ItemLabeling const &	labeling
	)

friend

Definition at line 227 of file ItemLabeling.cpp.

Member Data Documentation

◆ itemCount

uint64_t storm::models::sparse::ItemLabeling::itemCount

protected

Definition at line 226 of file ItemLabeling.h.

◆ labelings

std::vector<storm::storage::BitVector> storm::models::sparse::ItemLabeling::labelings

protected

Definition at line 232 of file ItemLabeling.h.

◆ nameToLabelingIndexMap

std::unordered_map<std::string, uint64_t> storm::models::sparse::ItemLabeling::nameToLabelingIndexMap

protected

Definition at line 229 of file ItemLabeling.h.

The documentation for this class was generated from the following files:

src/storm/models/sparse/ItemLabeling.h
src/storm/models/sparse/ItemLabeling.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ ItemLabeling() [1/2]

◆ ItemLabeling() [2/2]

◆ ~ItemLabeling()

Member Function Documentation

◆ addLabel() [1/3]

◆ addLabel() [2/3]

◆ addLabel() [3/3]

◆ addLabelToItem()

◆ addUniqueLabel() [1/2]

◆ addUniqueLabel() [2/2]

◆ asChoiceLabeling() [1/2]

◆ asChoiceLabeling() [2/2]

◆ asStateLabeling() [1/2]

◆ asStateLabeling() [2/2]

◆ containsLabel()

◆ generateUniqueLabel()

◆ getItemHasLabel()

◆ getItems()

◆ getLabels()

◆ getLabelsOfItem()

◆ getNumberOfItems()

◆ getNumberOfLabels()

◆ getSubLabeling()

◆ hash()

◆ isChoiceLabeling()

◆ isStateLabeling()

◆ join()

◆ operator=()

◆ operator==()

◆ permuteItems()

◆ printCompleteLabelingInformationToStream()

◆ printLabelingInformationToStream()

◆ removeLabel()

◆ removeLabelFromItem()

◆ setItems() [1/2]

◆ setItems() [2/2]

Friends And Related Symbol Documentation

◆ operator<<

Member Data Documentation

◆ itemCount

◆ labelings

◆ nameToLabelingIndexMap
